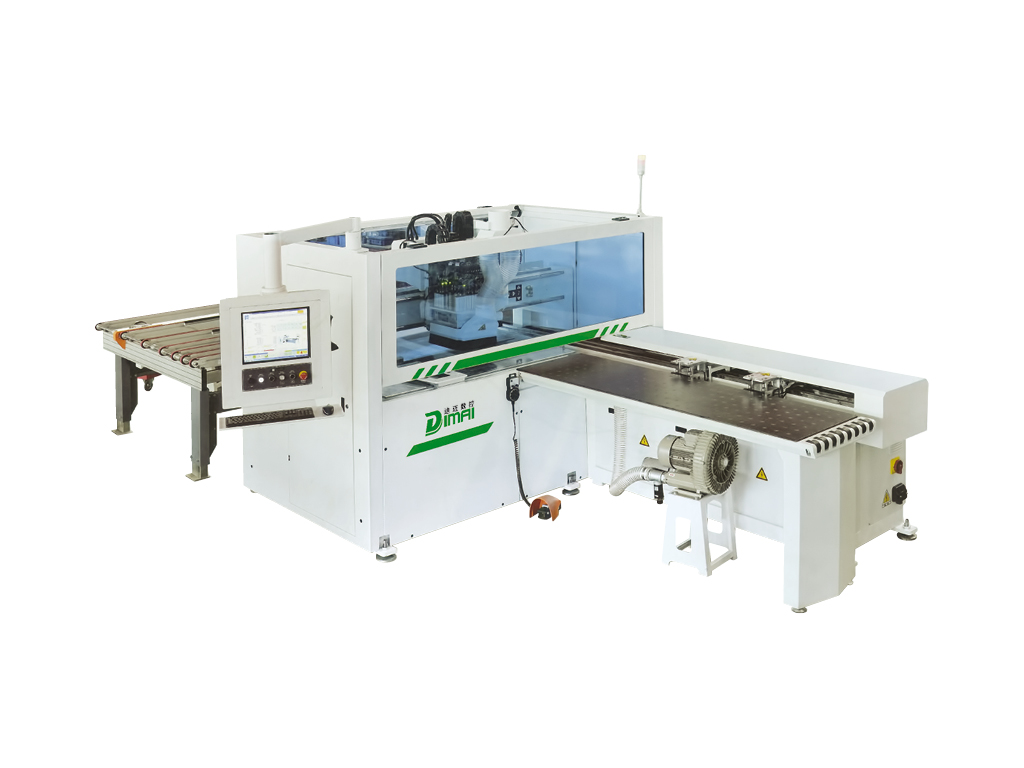

Dimai CNC infrared side hole machine

Core advantages

Function, the product belongs to infrared induction side punching machine, suitable for horizontal hole processing of panel furniture such as cabinets and wardrobes.

Structure: The body is welded with high-strength thick-walled steel pipes, annealed and sandblasted, with a stable structure and guaranteed precision.

Accessories: The product accessories are all made of well-known brands-Taiwan guide screw/Taiwan reducer/Schneider electrical components, with stable performance and durability.

Precision: Excellent accessories and detection devices enable the product to obtain better positioning and running accuracy.

High speed: high-power servo motor and reducer direct connection design, high torque, high kinetic energy, stable operation and high efficiency.

Application range

Horizontal hole processing of panel furniture such as cabinets and wardrobes.

Features:

Infrared positioning CNC side hole machine is a CNC machine model developed for side hole punching of panel furniture. The machine can realize fool-proof operation, without any technicians to operate, and without any software docking. Three small boards can be processed at a time, realizing three-station processing, fast processing speed and high efficiency. One side hole machine can connect to 2-3 cutting machines, easily solving the problem of horizontal holes. At the same time, the machine can switch between long and short boards, wooden tenon holes, single holes, and blind holes to meet a variety of process requirements.

Main technical parameters

Device model	DM-SP1
Table size	500X2500mm
Idle speed	60m/min
Speed of work	20m/min
Spindle power	3.5KW
Spindle speed	12000r/min
Operating Voltage	AC380V/3PH/50HZ
Drive System	Xinjie servo motor
Operating system	Wuxi Xinjie
Sensing system	Omron
Targeting	Movable high-precision positioning cylinder three-point positioning
Assisting equipments	6 sets of holding cylinders
Transmission	Shangyin guide rail/PMI screw/XINYUE rack
