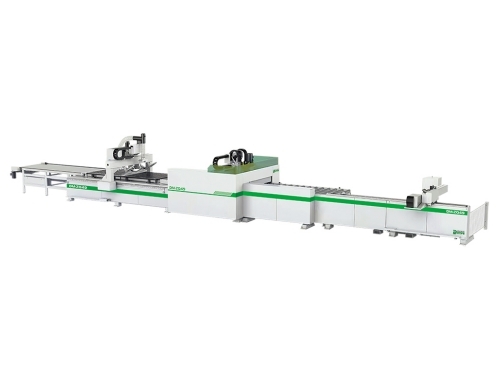

Fully automatic double-sided drilling and cutting machine

Features

This machine is an integrated processing equipment for drilling, grooving, cutting and blanking of plates.

The machine consists of three parts: automatic labeling area, drilling area, and cutting and blanking area. Workers only need to place the plates on the labeling lifting platform, and the machine can automatically complete the labeling, front and back drilling and grooving, and cutting and blanking of the plates.

Subsequently, with the side hole edge banding machine, the side hole edge banding is completed by one machine, saving labor and space, reducing the drilling process, and reducing bumps during transportation.

The equipment is simple to operate, high in efficiency and precision, and can produce 140-160 plates in 8 hours.

Main technical parameters

Maximum workpiece length 2800mm

Maximum workpiece width 1220mm

Maximum workpiece height 40mm

Number of drill rods in drilling station Upper vertical drill 9V Lower vertical drill 9V

Drilling station spindle power Upper spindle 3.5kW Lower spindle 3.5kW9kW

Cutting station spindle power CC (12 knives)/2x6kW+2×3.5kW
